SiC DPF Substrate

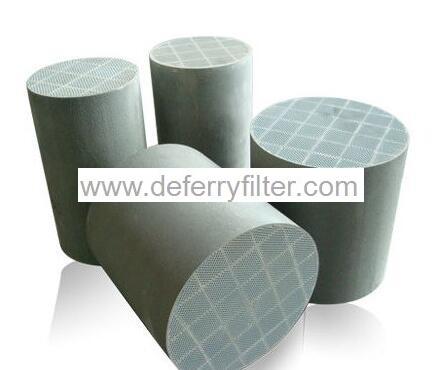

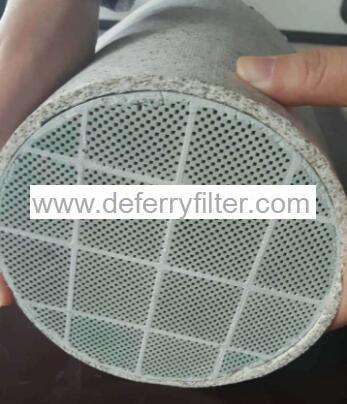

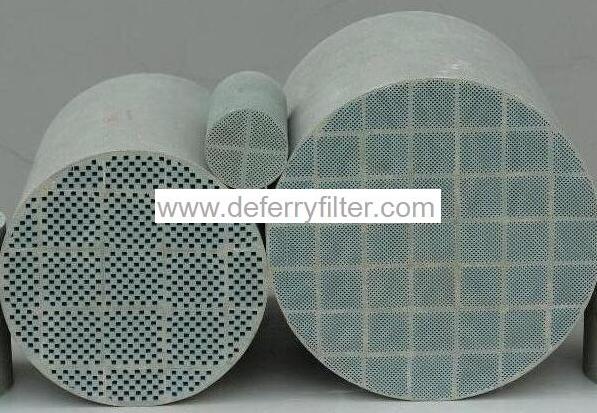

SiC DPF substrate
- Silicon Carbide Diesel particulate filter
- Product description: SiC DPF substrate,Silicon Carbide Diesel particulate filter

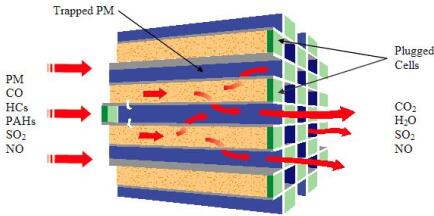

Compared to cordierite materials, DEFERRY®'s Silicon Carbide Diesel particulate filter is better ability to withstand high temperatures during regeneration of the filter and its low thermal expansion make SiC an excellent candidate for diesel particulate filters, especially for passenger cars, but also for retro fit of filters for busses, trucks and the off-road market.
Diesel particulate filters made of silicon carbide are formed by extrusion and bonded either by recrystallization or reaction bonded to control the pore size and distribution.
Main Applications:
1).On-Road Passenger/Medium/Heavy-Duty Vehicles
2)..Stationary Engines 3). Power Generation
4). Dust Control 5). Mining Equipment
6).Construction 7).Marine
8).Material Handling 9).Diesel Locomotive
Specification for DEFERRY®'s SiC Diesel Particulate Filters：
Size(Diameter × length)
Filter volume(Liter)
Cell density
Shape
mm
Inches
Φ70×152
Dia.2.76×6
0.58
100/200CPSI
Rotundity
Φ144×152
Dia.5.66×6
2.48
100/200CPSI
Rotundity
Φ144×205
Dia.5.66×8
3.34
100/200CPSI
Rotundity
Φ144×254
Dia.5.66×10
4.13
100/200CPSI
Rotundity
Φ144×305
Dia.5.66×12
4.96
100/200CPSI
Rotundity
Φ170×254
Dia.6.69×10
5.76
100/200CPSI
Rotundity
Φ190×200
Dia.7.48×7.87
5.67
100/200CPSI
Rotundity
Φ228×152
Dia.8.97×6
6.20
100/200CPSI
Rotundity
Φ228×254
Dia.8.97×10
10.37
100/200CPSI
Rotundity
Φ228×305
Dia.8.97×12
12.45
100/200CPSI
Rotundity
Φ240×240
Dia.9.45×9.45
10.85
100/200CPSI
Rotundity
Φ240×254
Dia.9.45×10
11.48
100/200CPSI
Rotundity
Φ240×305
Dia.9.45×12
13.79
100/200CPSI
Rotundity
Φ260×305
Dia.10.23×12
16.19
100/200CPSI
Rotundity
Φ270×305
Dia.10.63×12
17.45
100/200CPSI
Rotundity
Φ286×305
Dia.11.26×12
19.58
100/200CPSI
Rotundity
(98×195)×154
(3.8×7.7)×6
2.60
100/200CPSI
Race track
(98×195)×205
(3.8×7.7)×8
3.50
100/200CPSI
Race track
(98×195)×254
(3.8×7.7)×10
4.30
100/200CPSI
Race track
(98×195)×305
(3.8×7.7)×12
5.20
100/200CPSI
Race track
