Heat Accumulation Substance

Heat Accumulation Substance
honeycomb ceramic substrate
RTO substrate
RCO substrate
Product description: honeycomb ceramic substrate,RTO,RCO.
INQUIRY

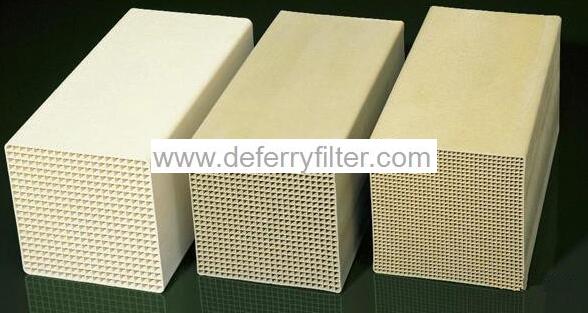

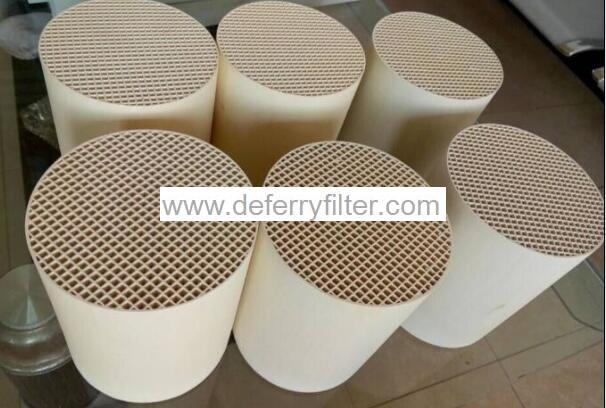

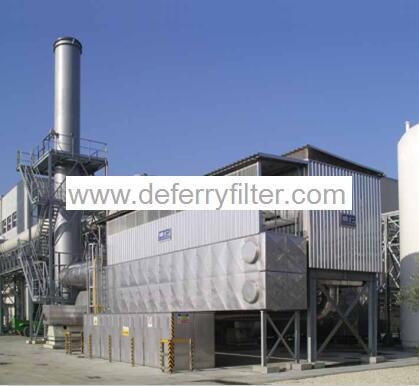

Deferry®'s Honeycomb Ceramic Heat Accumulation Substance it's features of corrosion resistances, large specific surface area, small heat Resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. It's widely used in many fields. The honeycomb ceramic as the heat exchange media is the key part for heat storing HTAC ( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger And other environmental protection and energy saving products.

Material :cordierite, mullite,cordierite-mullite,corundum- mullite,High alumina.

Characterics:

1.Low thermal expansion

2.Large specific heat capacity

3.High specific surface area

4.Low pressure drop

5.Small thermal resistance

6.Good thermal conductivity

7.Good Heat-shock resistting ability

Application:

Iron and steel, metallurgy, petrochemical, electric power, boiler and Fuel elecric plant, Thermal power plant, theheat power station etc.

Specification for DEFERRY®'s Honeycomb Ceramic Heat Accumulation Substance:

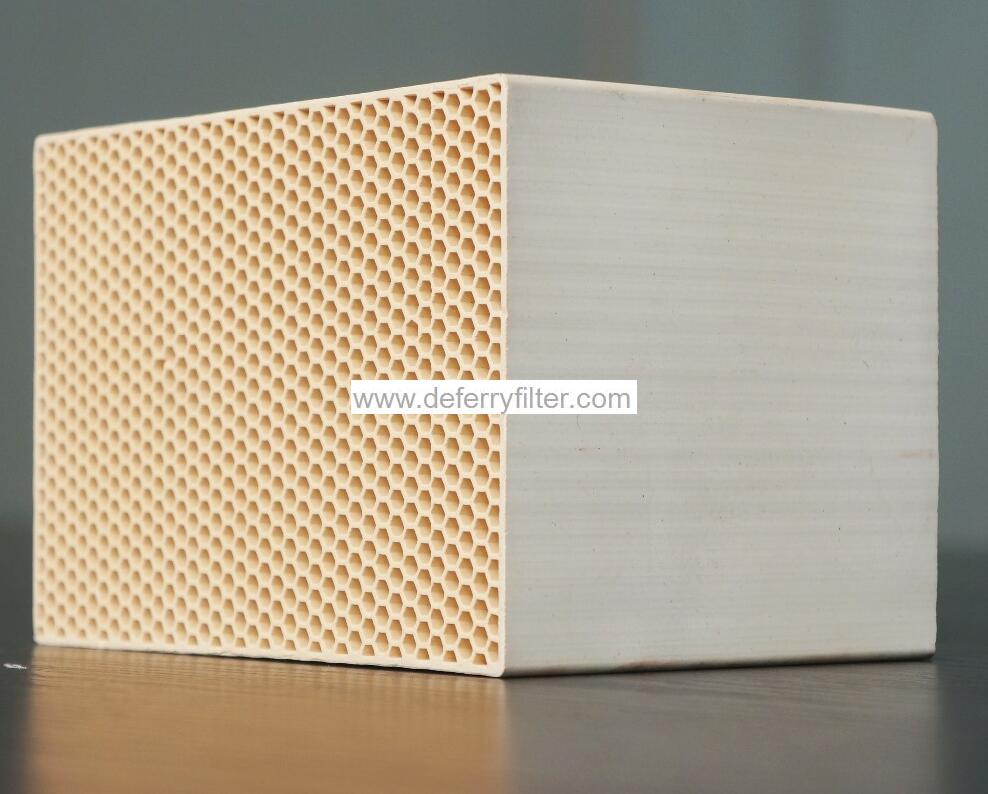

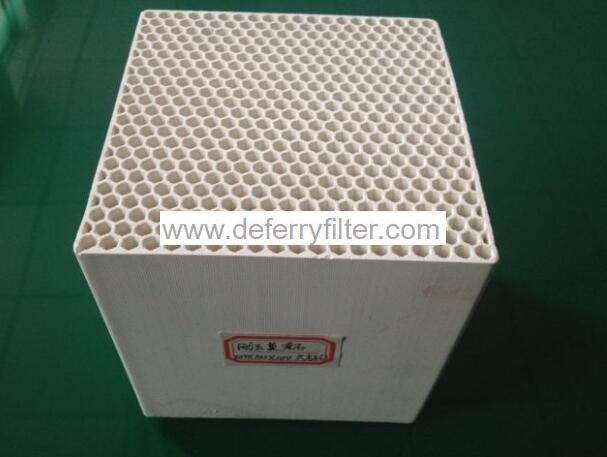

Hexagon hole shape
Dimensions (mm)	Bore diameter(mm)	Wall thickness(mm)	Heat transfer area(㎡/m³)	Aperture ratio(%)
150×100×100	3.1	1.0	673	53
150×100×100	3.1	1.5	625	49
150×100×100	3.5	1.0	655	58
150×100×100	3.9	1.1	624	58
100×100×100	3.1	1.0	673	53
150×100×100	3.5	1.0	655	58
150×100×100	3.9	1.1	624	58

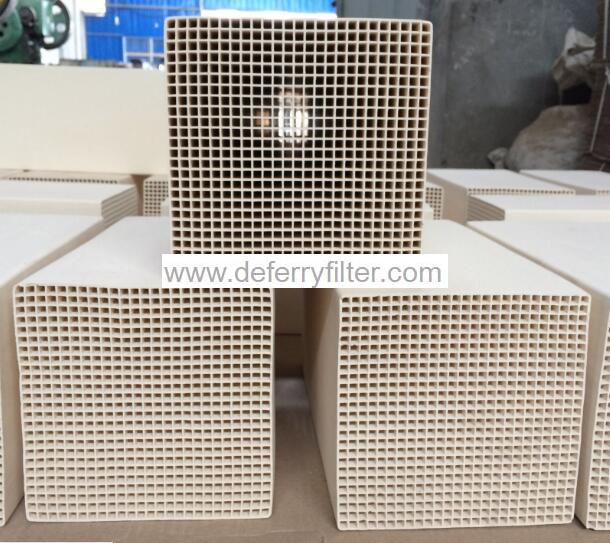

Square hole shape
150×100×100	2.5	1.0	784	49
150×100×100	3.0	1.1	691	52
150×100×100	5.0	2.0	329	49
100×100×100	2.5	1.0	784	49
100×100×100	3.0	1.1	691	52
100×100×100	5.0	2.0	329	49
165×110×100	3.0	1.1	670	52
